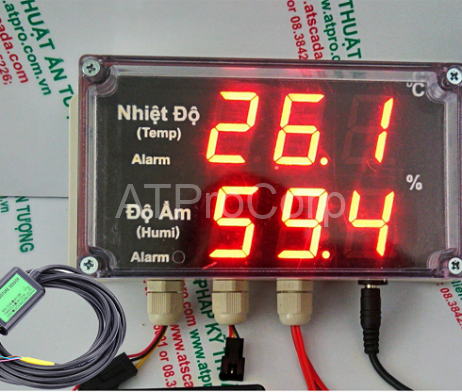

AGRICULTURE SOIL TEMPERATURE AND HUMIDITY MONITORING CONTROLLER (AT-THMS-S 3.1)

Product Description

Specifications

Application: Soil Moisture/Temperature Measurement, Scientific Experiment, Water-Saving Irrigation, Greenhouse, Flower & Vegetable, Grass & Farm, …	Functionality: Soil Moisture/Temperature Measurement	LED Color: Red
Usage: Indoor	Screen Dimention: 155mm x 88mm x 65mm	Measure Range: -40 to +80 ⁰C, 0 to 100%rH
Power supply: 100-240V AC 50/60HZ	Working circumstance: -20 to 60 ⁰C, 0~95% RH	Resolution: 0.1 ⁰C, 0.1%
IP degree: 50	Communication: Modbus RTU Rs485 (option)	Accuracy: +- 1 ⁰C, +-5%rH

Packaging & Delivery

Packaging Details:

Carton box with PE foam inside for product protection

Delivery Detail:

3-15 working days

AT-THMS-S 3.1 controller is with AY-MS10 high sensitivity and precision sensor to detect the real time moisture of soil directly and stably through dielectric constant. It adopt International Standard measuring method to measure the water content of soil. It can be used in Soil Moisture Measurement, Scientific Experiment, Water-Saving Irrigation, Greenhouse, Flower & Vegetable, Grass & Farm, Soil Quick Testing, Plant, Sewage Treatment, Grain Storge, Precision Agriculture etc, and also in Water Resources, Weather, the water content measuring of particulate matter and so on.

Competitive Advantages

High sensitivity and accuracy, good interchangeability.
Reliably sealing, corrosion resisting, long service life in the soil.
With flame-retardant epoxy resins to make sure strong waterproof and anti-impact of external forces.
Made of high quality steel, the sensor can endure long time electrolysis and the corrosion of acid & base in the soil.
Protected from inverse wire connection.

Detailed Description:

1. We have been in this field for more than 7 years, all the products are produced and designed by ourselves;

2. High quality can be guaranteed with the finest materials.

3. OEM is available. We can process according to the sample. Welcome to contact us.

4. Different colors can be made.

5. Small MOQ accepted.

6. Providing two year warranty.

Master Feature:

Model	AT-THMS-S 3.1
Brand	ATPro
Usage	Soil Moisture/Temperature Measurement
Overall Size	155mm x 88mm x 65mm
Operation	Buttons on the right side of display
Numeric Characters	3-digit, 4” red with high quality bar segment
Viewing Distance	60m
LED Color Optional	Red, Amber; Blue, Green (default in red color)
Metal Materials	Black Aluminum alloy frame
Installation	Wall mounting
Energy Saving	Low power LED consuming
Power Adapter	External adapter

Technical Specifications:

Power supply	100-240V AC 50/60HZ
Working Environment:	-10℃~ 50℃, relative humidity: 0~95% RH
Temperature Measurement Ranges And Errors	-40 ~ 125℃,±1℃;
Temperature Resolution	0.1℃;
Power Consumption	< 5 Watt
Net Weight	1.3Kg
Gross Weight	1.5 kg
Package Size	200mm x 450mm x 70mm.
Standard Of Plug	America/British/ Australia /Europe

Shipping Details:

Delivery Time(Sample)	3-15 working days;
Shipping Way	TNT, DHL, SF, Fedex;, EMS, UPS
Payment Terms	1. T/T, and Western Union are accepted;2. For bulk production: 50% pay in advance, 50% pay before warehouse entry.
Package	Carton or wooden box with PE foam receptacle inside for protection.

What’s in the box?

1 * 4” 3 digits temperature sensor led display

1 * power adapter

1 * Use Guider

1 * High Precise Temperature Sensor

Why choose our company?
Founded in 2010 and located in Ho Chi Minh City Development Zone of Vietnam, AnTuong Technology Solution Joint-Stock Company engages in

LED products: large LED clock, temperature, humidity, O2, CO2, pressure monitoring LED panels, industrial productivity tracking LED panels, … and
New technologies with IoT ATSCADA and PLCPi system.

We have a powerful R&D team, with the independent property rights and core technologies, and have the advantage of fast development and quick delivery.

Our LED Products are designed in the unique building blocks structure and produced in a complete and reliable system, which guarantees the quality and quick delivery.
