Specifications temperature led display AT-TMT-L

Application: Warehouse, Cold storage, Plant	Functionality: environment temperature measuring	LED Color: Red
Usage: Indoor	Screen Dimention: 180mm x 430mm x 50mm.	Measure Range: -40 to +125 ⁰C
Power supply: 100-240V AC 50/60HZ	Working circumstance: -20 to 60 ⁰C, 0~95% RH	Resolution: 0.1 ⁰C
IP degree: 50	Communication: Modbus RTU Rs485 (option)	Accuracy: +- 1 ⁰C

Packaging & Delivery

Packaging Details:

Carton box with PE foam inside for product protection

Delivery Detail:

3-15 working days

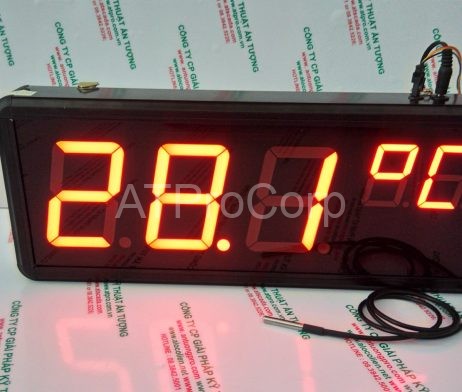

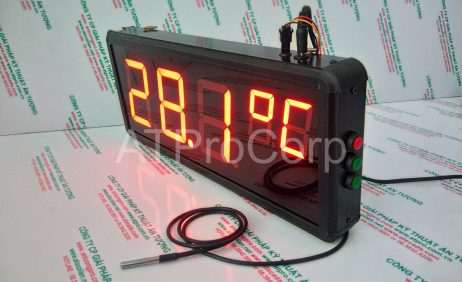

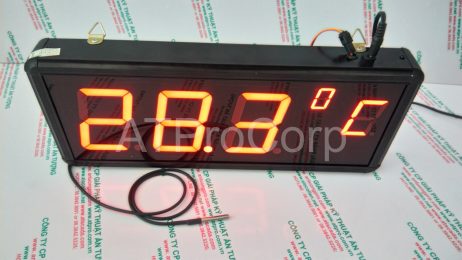

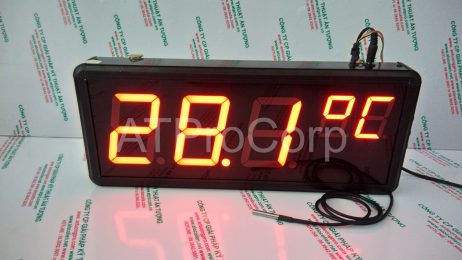

The model AT-TMT-L is a 4 inch 3 digits LED digital temperature sensor led display. It covers with Black aluminum alloy frame and looks exquisite beauty. And the LED digital digits can fully static display even when it is shaking. The degrees Celsius is default for displaying, Fahrenheit is an option.

It is applied to anywhere has a requirement for environment temperature monitoring such as computer room, all kinds of storerooms, hospitals, warehouse, production room and so on.

Detailed Description:

1. We have been in this field for more than 7 years, all the products are produced and designed by ourselves;

2. High quality can be guaranteed with the finest materials; You can either use it directly under the sun or in the raining weather!

3. OEM is available. We can process according to the sample. Welcome to contact us.

4. Different colors can be made.

5. Small MOQ accepted.

6. CE, Rohs passed;

7. Providing two year warranty.

Master Feature:

Model	AT-TMT-L
Brand	ATPro
Usage	temperature sensor led display
Overall Size	180mm x 430mm x 50mm.
Operation	Buttons on the right side of display
Numeric Characters	3-digit, 4” red with high quality bar segment
Viewing Distance	60m
LED Color Optional	Red, Amber; Blue, Green (default in red color)
Metal Materials	Black Aluminum alloy frame
Installation	Wall mounting
Energy Saving	Low power LED consuming
Power Adapter	External adapter

Technical Specifications:

Power supply	100-240V AC 50/60HZ
Working Environment:	-10℃~ 50℃, relative humidity: 0~95% RH
Temperature Measurement Ranges And Errors	-40 ~ 125℃,±1℃;
Temperature Resolution	0.1℃;
Power Consumption	< 5 Watt
Net Weight	1.3Kg
Gross Weight	1.5 kg
Package Size	200mm x 450mm x 70mm.
Standard Of Plug	America/British/ Australia /Europe

Shipping Details:

Delivery Time(Sample)	3-15 working days;
Shipping Way	TNT, DHL, SF, Fedex;, EMS, UPS
Payment Terms	1. T/T, and Western Union are accepted; 2. For bulk production: 50% pay in advance, 50% pay before warehouse entry.
Package	Carton or wooden box with PE foam receptacle inside for protection.

What’s in the box?

1 * 4” 3 digits temperature sensor led display

1 * power adapter

1 * Use Guider

1 * High Precise Temperature Sensor

> Explore more: Large temperature humidity display.

Why choose our company?

Founded in 2010 and located in Ho Chi Minh City Development Zone of Vietnam, AnTuong Technology Solution Joint-Stock Company engages in

LED products: large LED clock, temperature, humidity, O2, CO2, pressure monitoring LED panels, industrial productivity tracking LED panels, … and
New technologies with IoT ATSCADA and PLCPi system.

We have a powerful R&D team, with the independent property rights and core technologies, and have the advantage of fast development and quick delivery.

Our LED Products are designed in the unique building blocks structure and produced in a complete and reliable system, which guarantees the quality and quick delivery.

Please contact hotline of ATSCADA Lab. Thank you.

ATSCADA - Providing ATSCADA software - The monitoring and data acquisition control system is the appropriate choice for integrated system projects, IoT, smart city projects, agriculture 4.0... Is trusted by many customers.
