Specifications temperature led display AT-TMT-S
Application: Warehouse, Cold storage, Plant | Functionality: environment temperature measuring | LED Color: Red |
Usage: Indoor | Screen Dimention: 120mm x 270mm | Measure Range: -40 to +125 0C |
Power supply: 100-240V AC 50/60HZ | Working circumstance: -20 to 60 0C, 0~95% RH | Resolution: 0.1 0C |
IP degree: 50 | Communication: Modbus RTU Rs485 (option) | Accuracy: +- 1 0C |
Packaging & Delivery
- Packaging Details:Carton box with PE foam inside for product protection
- Delivery Detail: 3-15 working days

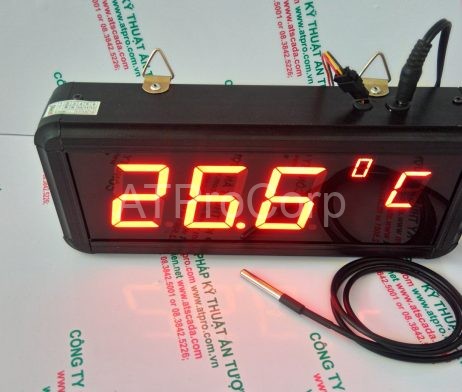

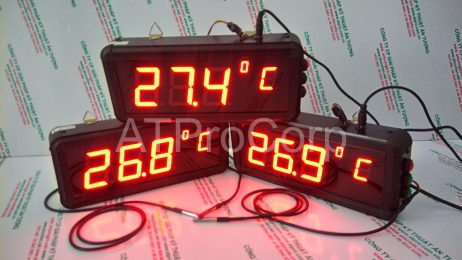

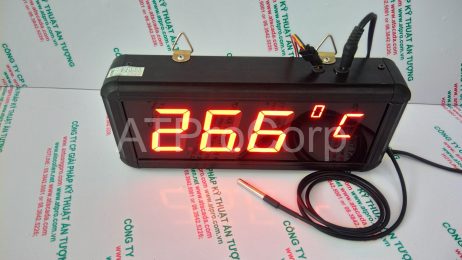

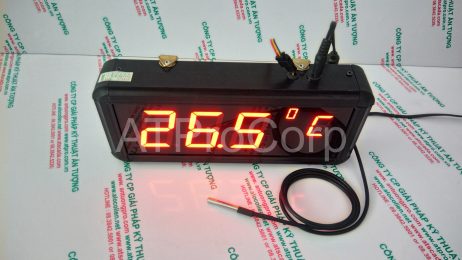

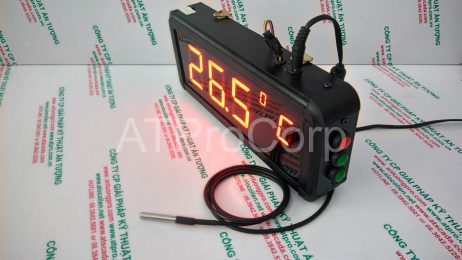

The model AT-TMT-S is a 2.3 inch 3 digits LED digital temperature sensor led display. It covers with Black aluminum alloy frame and looks exquisite beauty. And the LED digital digits can fully static display even when it is shaking. The degrees Celsius is default for displaying, Fahrenheit is an option.
It is applied to anywhere has a requirement for environment temperature monitoring such as computer room, all kinds of storerooms, hospitals, warehouse, production room and so on.
Detailed Description:
1. We have been in this field for more than 7 years, all the products are produced and designed by ourselves;
2. High quality can be guaranteed with the finest materials; You can either use it directly under the sun or in the raining weather!
3. OEM is available. We can process according to the sample. Welcome to contact us.
4. Different colors can be made.
5. Small MOQ accepted.
6. CE, Rohs passed;
7. Providing two year warranty.
Master Feature:
Model | AT-TMT-S |
Brand | ATPro |
Usage | temperature sensor led display |
Overall Size | 120mm x 270mm x 50mm |
Operation | Buttons on the right side of display |
Numeric Characters | 3-digit, 2.3” red with high quality bar segment |
Viewing Distance | 30m (appr. 18 inch ); |
LED Color Optional | Red, Amber; Blue, Green (default in red color) |
Metal Materials | Black Aluminum alloy frame |
Installation | Wall mounting |
Energy Saving | Low power LED consuming |
Power Adapter | External adapter |
Power supply | 100-240V AC 50/60HZ |
Working Environment: | -10℃~ 50℃, relative humidity: 0~95% RH |
Temperature Measurement Ranges And Errors | -40 ~ 125℃,±1℃; |
Temperature Resolution | 0.1℃; |
Power Consumption | < 5 Watt |
Net Weight | 0.5Kg |
Gross Weight | 0.7 kg |
Package Size | 320*140*100mm |
Standard Of Plug | America/British/ Australia /Europe |
Shipping Details:
Delivery Time(Sample) | 3-15 working days; |
Shipping Way | TNT, DHL, SF, Fedex;, EMS, UPS |
Payment Terms | 1. T/T, and Western Union are accepted;
2. For bulk production: 50% pay in advance, 50% pay before warehouse entry. |
Package | Carton or wooden box with PE foam receptacle inside for protection. |
What’s in the box?
1 * 2.3” 3 digits temperature sensor led display |
1 * power adapter |
1 * Use Guider |
1 * High Precise Temperature Sensor |
> Explore more: Large temperature humidity display.
Why choose our company?
Founded in 2010 and located in Ho Chi Minh City Development Zone of Vietnam, AnTuong Technology Solution Joint-Stock Company engages in
- LED products: large LED clock, temperature, humidity, O2, CO2, pressure monitoring LED panels, industrial productivity tracking LED panels, … and
- New technologies with IoT ATSCADA and PLCPi system.
We have a powerful R&D team, with the independent property rights and core technologies, and have the advantage of fast development and quick delivery.
Our LED Products are designed in the unique building blocks structure and produced in a complete and reliable system, which guarantees the quality and quick delivery.
Please contact hotline of ATSCADA Lab. Thank you.
ATSCADA - Providing ATSCADA software - The monitoring and data acquisition control system is the appropriate choice for integrated system projects, IoT, smart city projects, agriculture 4.0... Is trusted by many customers.
