Common ATSCADA Errors and How to Fix Them – FAQ for ATSCADA Tools and Systems

Issues Related to ATDriverServer & iTagBuilder Software

Why Does ATDriverServer Not Open?

There are two common cases when ATDriverServer does not open properly, which are typical ATSCADA Common Errors.

• Case 1: When launching the software, ATDriverServer does not appear on the screen. In this situation, the program may already be running but is hidden in the taskbar tray area. You can check as shown in the image.

Case 2: When running ATDriverServer, the software does not display on the screen and is also not visible on the taskbar. In this case, open Task Manager to check whether ATDriverServer is frozen or still running in the background. If found, select End Task and restart the software. This is one of the most common ATSCADA Common Errors.

Error when running ATDriverServer & iTagBuilder application due to lack of permissions\

Run as Admin

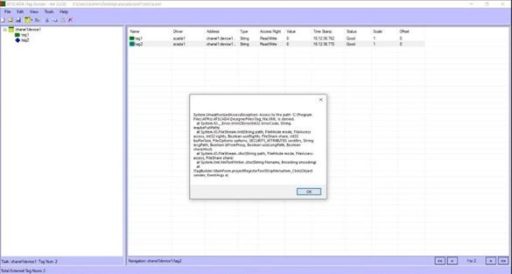

=> In case ATDriverServer & iTagBuilder is launched, the following error will appear on the main interface:

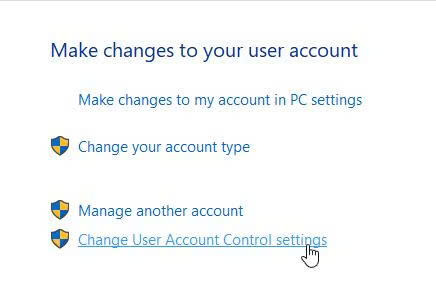

This error occurs because the application is missing Run as Administrator permission. Simply close all running applications and restart them using Run as Administrator mode to use the software normally again. This is one of the typical ATSCADA Common Errors.

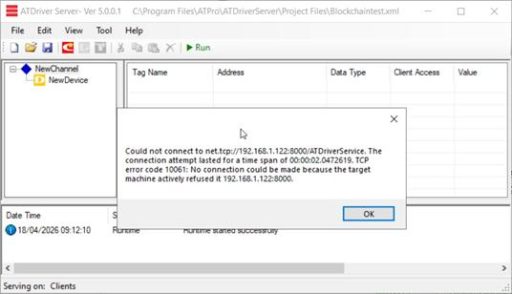

Error When Running ATDriverServer & iTagBuilder with TagNames Continuously Showing BAD Status or Unable to Read Values

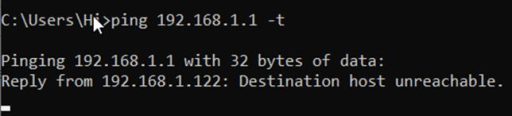

You should check the software connection again. If the connection uses TCP, use the ping command in CMD to test the network signal of the device, especially in power management systems using remote meters.

This issue is one of the most frequent ATSCADA Common Errors. The main cause is usually an unstable connection signal to the sensor, resulting in TagNames showing BAD status.

You should check the software connection again. If the connection uses TCP, use the ping command in CMD to test the network signal of the device.

Error when iTagBuilder application cannot scale values

=> In this case, the cause is that the Number Format of the computer running the software is incorrect. To fix this, go to

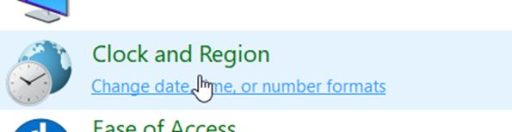

Control Panel => Change date, time, or number format in Clock Region

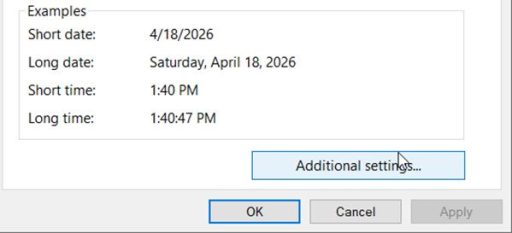

Select Additional Settings

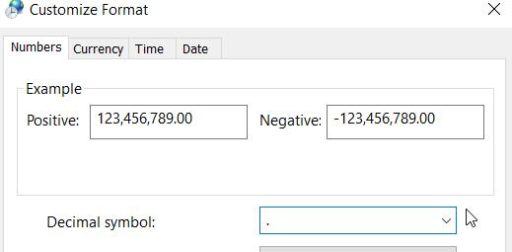

In the Decimal Symbol field, we must use the correct format, which is a dot (.), especially for hospital temperature humidity monitoring systems where decimal sensor values are common.

Issues related to the Tools/Components

Error: iDataReporter tool cannot add column settings.

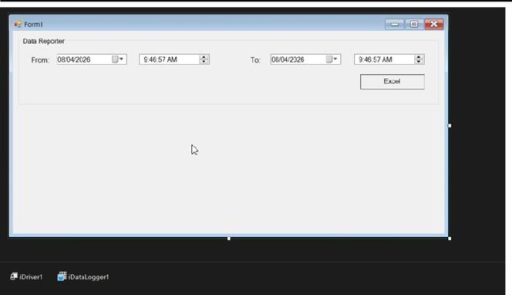

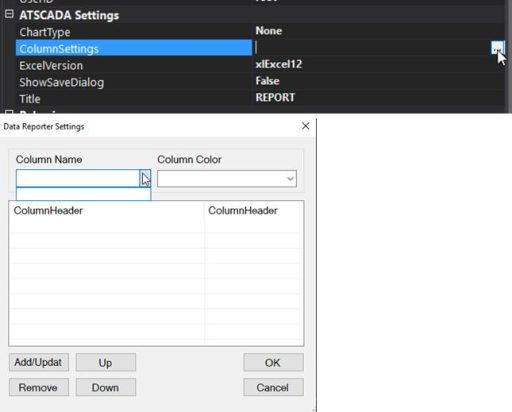

If you encounter a situation where you pull up the iDataReporter tool, prepare to set up Column Settings to add columns to export data, but cannot select the column to add, as shown in the image below:

The cause of this issue is the missing initialization of the iDataLogger tool. These two tools must always work together and need to be created in the correct order. If you only drag iDataReporter into the project, this problem may occur. This is one of the common ATSCADA Common Errors.

Solution

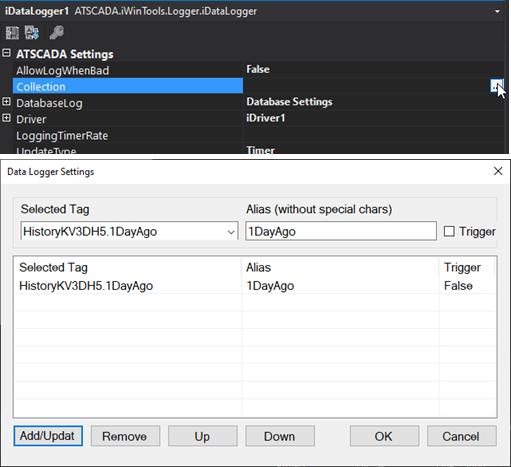

First, drag iDataLogger into the project, then configure the Collections settings:

The problem is due to the missing initialization of the iDataLogger tool. These two tools must be created together and in order. If you only pull out iDataReporter, you will encounter this issue.
The solution is as follows:
Pull out iDataLogger first, then declare Collections:

Click OK to save the settings. Then run the software so that iDataLogger can automatically create the Database and Tables if they do not already exist.

After the process is completed successfully, reopen the iDataReporter tool. You will see the Column Settings along with the configured columns previously set in iDataLogger. This is one of the common ATSCADA Common Errors.

iSymbolFactory Tool Does Not Display Images

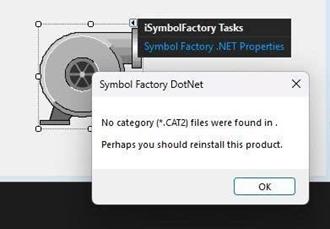

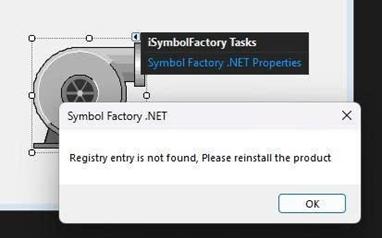

After installing the iSymbolFactory library from the Resource package and running it for the first time, you may encounter the following error. This is another typical ATSCADA Common Errors issue.

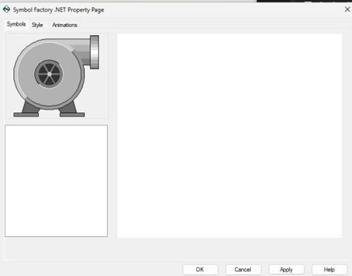

I clicked OK, but when I went inside, I didn’t see any images.

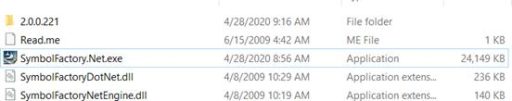

Now we will need to install the SymbolFactory.Net.exe file located in the same iSymbolFactoryTools folder.

Once the installation is complete.

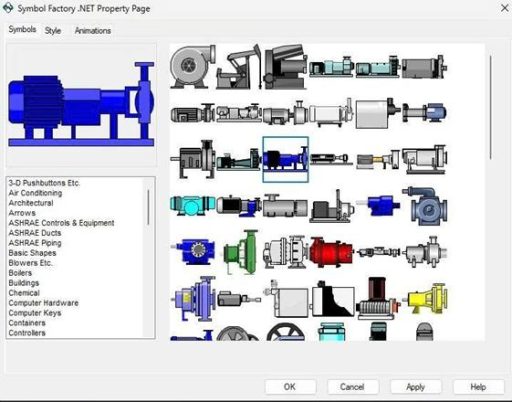

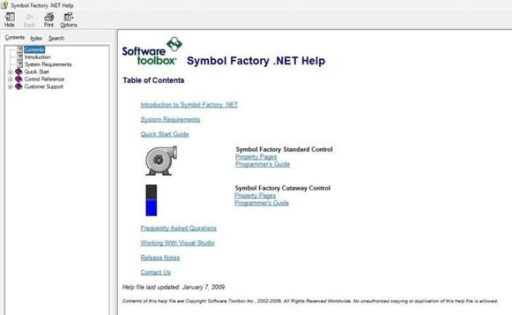

If you go back to Symbol Factory in Visual Studio and test it again, you will see the Symbol Factory library.
