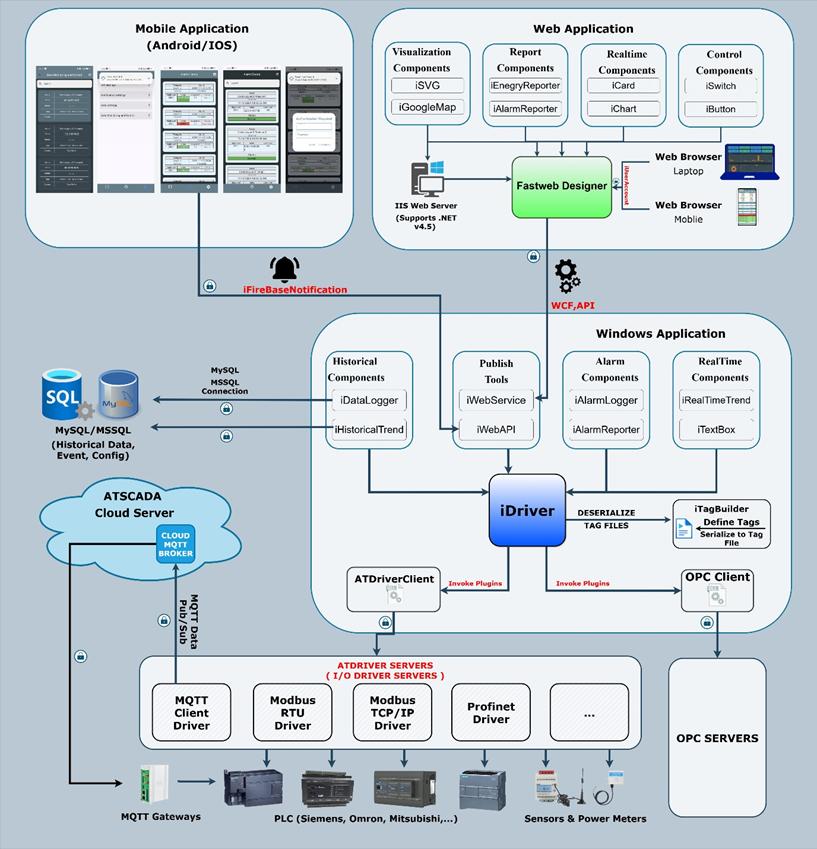

ATSCADA Software Structure: Modern SCADA Platform Architecture

ATSCADA Software is built on a modern distributed architecture that supports cloud deployment, multi-platform access, and secure industrial communication. It helps factories, utilities, and industrial facilities manage operations efficiently from field devices to remote control centers.

The ATSCADA ecosystem is organized into several core layers to ensure scalability, reliability, and real-time performance.

Field Device & Data Acquisition Layer

The first layer of ATSCADA Software focuses on collecting real-time data directly from industrial equipment such as PLCs, sensors, meters, and field instruments.

ATSCADA supports leading PLC brands including Siemens, Omron, Mitsubishi, and many others, making integration easier for existing industrial systems.

ATDriver Servers

Dedicated ATDriver Servers act as data gateways between field devices and the SCADA platform. These servers support common industrial protocols such as Modbus RTU, Modbus TCP/IP, and Profinet hrough an industrial network smart automation system for stable communication.

This flexible driver architecture allows accurate and efficient data transfer from plant-floor equipment.

MQTT and OPC Integration

A key advantage of ATSCADA Software is support for both modern IoT standards and traditional industrial communication.

MQTT Gateways and MQTT Client Drivers enable lightweight data exchange, while third-party OPC Server integration helps connect legacy automation systems without replacing hardware.

view atscada demo & download

ATSCADA Cloud Server Layer

The cloud layer is designed for remote monitoring, centralized management, and scalable industrial deployment.

Cloud MQTT Broker

At the center of the cloud environment is the Cloud MQTT Broker, which manages two-way publish/subscribe communication between devices, applications, and remote users.

This architecture improves real-time messaging speed, reduces bandwidth usage, and supports expansion across multiple sites.

Modern Data Flow Without SQL Connectors

Unlike traditional SCADA systems, ATSCADA Software uses MQTT communication instead of relying on SQL connectors in the cloud collection layer. This creates faster, cleaner, and more secure data transmission.

Secure Communication

All traffic between gateways and the cloud is protected using TLS/SSL encryption, authentication layers, and secure network channels. This helps prevent unauthorized access, interception, and cyber threats.

Core Application Processing Layer

The intelligence of ATSCADA Software is powered by its core processing layer.

iDriver Control Engine

The iDriver acts as the main processing engine. It uses plugin-based architecture to connect with ATDriverClient libraries and OPC Client modules.

This modular design improves system flexibility, maintenance, and future expansion.

Tag Configuration Management

The iTagBuilder tool defines and manages tags. It serializes tag files for deployment, and iDriver then deserializes them to distribute live data across dashboards and applications.

Historical Database Storage

ATSCADA securely connects with MySQL and Microsoft SQL Server through iDataLogger and iHistoricalTrend components.

These tools store historical process data, alarms, reports, and system configuration for analysis and reporting.

Multi-Platform Application Layer

One of the biggest strengths of ATSCADA Software is true multi-platform access across Windows, Web, and Mobile devices.

Windows Application

Operators can run ATSCADA on Windows PCs using rich HMI tools such as iRealTimeTrend, iTextBox, iAlarmLogger, and iAlarmReporter. A full ATSCADA iTools complete guide helps users configure these SCADA components efficiently.

Publishing tools like iWebService and iWebAPI also help share data with web platforms.

Web Application

Through IIS Web Server and .NET support, ATSCADA provides browser-based SCADA dashboards.

Using Fastweb Designer, users can build interfaces with SVG graphics, Google Maps, reporting tools, and interactive controls. Operators can access dashboards from desktops, laptops, tablets, and mobile browsers.

Mobile Application

ATSCADA mobile apps for Android and iOS allow operators to monitor systems remotely through secure API and cloud connections.

A standout feature is iFireBaseNotification, which sends real-time alarms, events, and critical alerts directly to smartphones.

Cloud SCADA Security Highlights

ATSCADA Software integrates security into every layer, protecting field communications, cloud servers, databases, web dashboards, and mobile apps.

Protection includes TLS/SSL encryption, access control, user authentication, network isolation, and secure remote connectivity.

This helps industrial organizations reduce risks related to data theft, malware, and cyberattacks.

Why Choose ATSCADA Software?

ATSCADA Software combines traditional SCADA reliability with modern cloud technology and flexible deployment.

Key benefits include distributed architecture, multi-platform access, MQTT integration, OPC compatibility, historical logging, real-time alarms, strong cybersecurity, and easy scalability.

It is ideal for manufacturing plants, utilities, water treatment facilities, energy management systems, building automation, and smart factories.

Conclusion

ATSCADA Software is more than a SCADA platform. It is a complete industrial digital transformation solution that enables organizations to monitor, control, and optimize operations anytime and anywhere.
